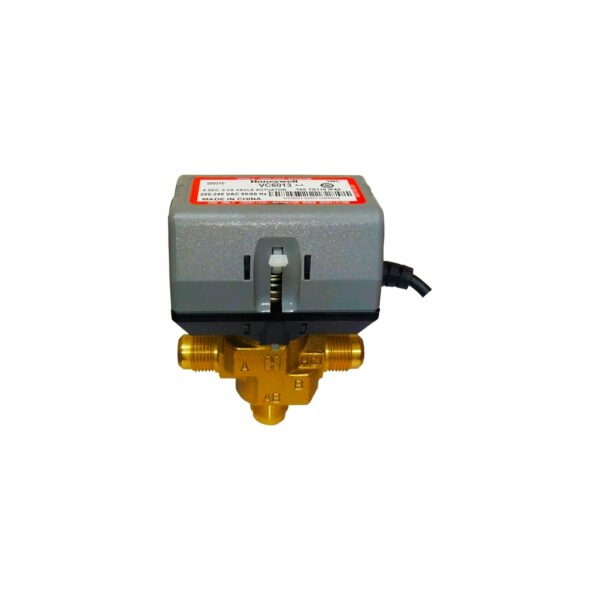

VC6013MC6000T Honeywell FCU Valve
$11.81
$21.38
For Bulk requirement, Kindly click on enquiry now button Product Details: Product Description Brand Honeywell Model No. VC6013MC6000T Size 15mm Number of ways 3 ways Voltage 200-240V ( 50-60 Hz) Actuator SPDT-with Molex Connector and 1000mm cable Body 1/2″ Flare ( no adaptor ) Cartridge 3,4 Power Consumption 6 Vatt max.at nominal voltages Nominal timing Valve opens in 6 Seconds @60 Hz Electrical Termination Molex requires mating connector receptacle / housing #39-01-2060 Contacts:- Mini -Fit5556 Series With integral 1000mm lead wire cable Ambient Temperature 0 – 65 Deg.C Fluid Temperature 0 – 95 Deg.C Shipping & Storage Temperature -40 – 65 Deg. C Valve Material Body: Bronze Cartridge: Ryton, Noryl “O” ring seals: EPDM rubber Stem: Stainless steel Actuator cover: Noryl Actuator base: Ryton Pressure Rating Static: 20 Bar Burst: 100 Bar Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
