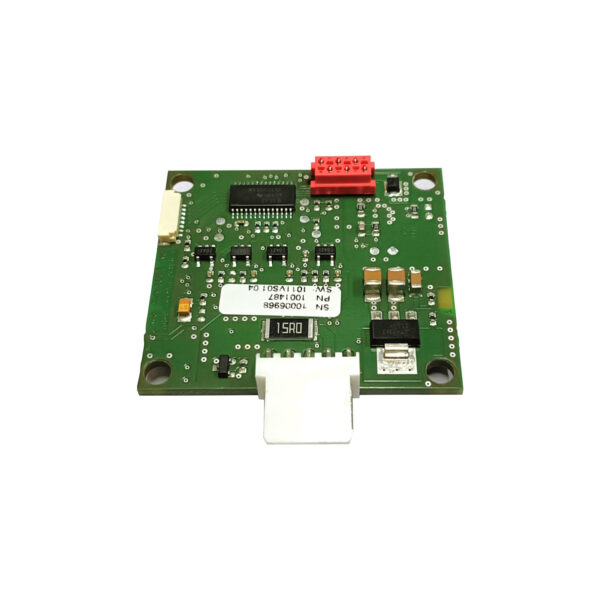

For Bulk requirement, Kindly click on enquiry now button Product Details: Product Description Brand Honeywell Envitec Model No. E1001487 Measuring principle Constant temperature mode Cross reference SpiroQuant MAX is designed to work with EnviteC’s hot-wire flow sensor SpiroQuant A . Measurement range 0 … 160 slpm (standard liter per minute) Accuracy ± 7% from measured value between 0 … 10 l/min with flow sensor SpiroQuant A ; ± 5% from measured value between 10 … 160 l/min with flow sensor SpiroQuant A Supply voltage 5 V DC ± 4 % (for 5 V version min. 4.8 V is required) Current consumption 70 … 250 mA (depending on gas flow) Interface RS-232 with level converter (EIA/TIA-232 compatible) Data rate 38400 Baud, Data bit 8, Stop bit 1, Parity none, Handshake none External wire cleaning TTL compatible H level (approx. 250 ms pulse length) Digital I/O (optional) TTL compatible signal, user specific level AD conversion Resolution: 10 bit Conversion time Approx. 5 ms Maximal date rate 200 samples per second Dimensions 38 x 41 mm (L x W) Height Max. 12 mm Weight Approx. 10 g Attachment holes 4 x Ø 3.2 mm Connection Board supply & communication: MicroMatch 6-pole; Flow sensor: Molex 5-pole Part number 1001487: OEM-Module SpiroQuant MAX; 1001475: Cable flow sensor; 1000470: Box flow sensors SpiroQuant A ; 1001488: Development Kit SpiroQuant MAX (incl. module, sensor cable, flow sensor, USB interface, USB cable and evaluation software) Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
