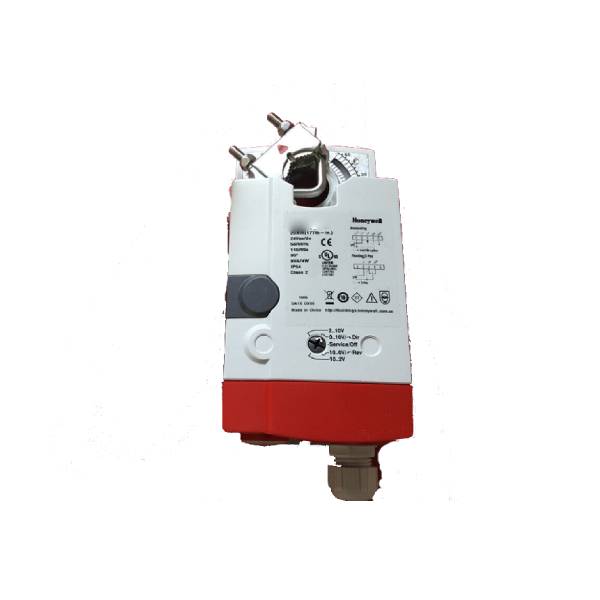

For Bulk requirement, Kindly click on enquiry now button Product Details: Product Description Brand Honeywell Model No. CN6120A1002 Type Damper Actuator Supply voltage 230 Vac ±15%, 50/60 Hz Nominal voltage 230 Vac, 50/60 Hz Power consumption 8 VA / 3 W Ambient limits Ambient operating limits -20… 60 °C (-5… 140 °F) Ambient storage limits -40… 80 °C (-40… 175 °F) Relative humidity 5…95%, non-condensing Safety Protection standard IP54 as per EN 60529 Protection class II as per EN 60730-1 Overvoltage category III Lifetime Full strokes 60000 Repositions 1.5 million Mounting Round damper shaft 10…27 mm (3/8…1-1/16″) Square damper shaft 10…18 mm (3/8…11/16″); 45° steps Shaft length min. 22 mm (7/8″) Torque rating 20 Nm (177 lb-in) Runtime 95 sec (60 Hz) / 110 sec (50 Hz or DC supply) Rotation stroke 95° ± 3° Weight (without cables) 1.35 kg (3 lbs.) Noise rating 40 dBA max. at 1 m Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
